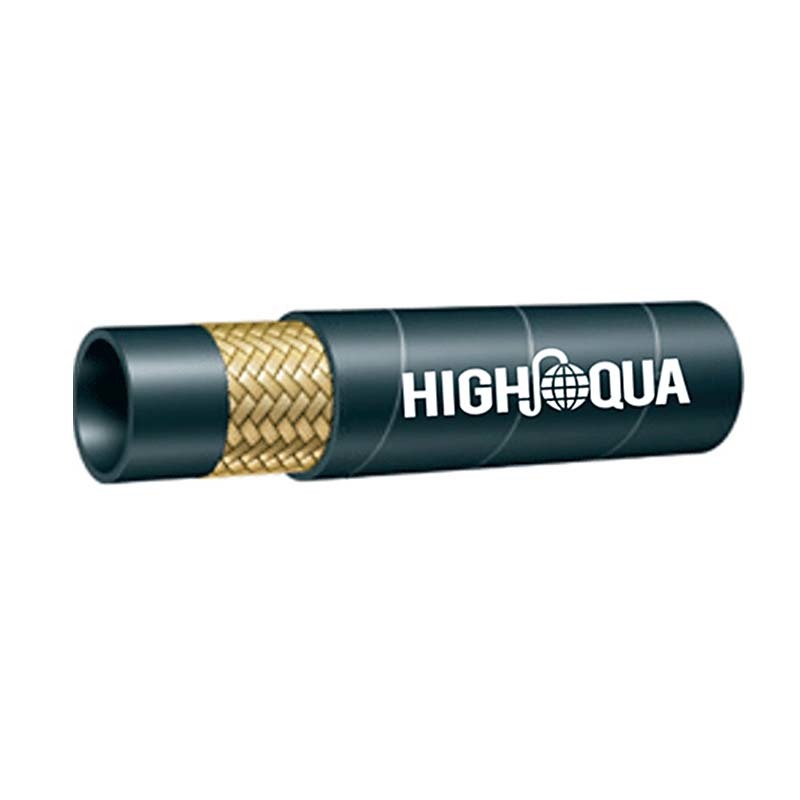

Single Wire Braided Hydraulic Hose DIN/EN853 1SN WG
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

Application: Medium pressure hydraulic hose applications including mineral oils, vegetable and repressed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water for heavy machines, mining fields, vehicles, hydraulic machines etc.

Inner tube: Oil resistance synthetic nitrile rubber (NBR).

Reinforcement: One braid of high-tensile steel wire.

Cover: Oil and environment resistant synthetic rubber.

Color and surface: Black, grey, blue, yellow, red, green, orange etc;

                              Fabric surface and smooth surface.

Temperature range: -40℉~ 212℉; -40℃ ~ 100℃

Equipment: Specially equipped vehicle, fork lift, heavy equipment, syringe agricultural machines, hydraulic piping line (machine tool, catapult).


Part NoBore
Hose I.D.Hose ODMax W.P.Min. B.P.Min. Bend Radius WeightWeight
inmminmmpsimpapsimpainmmkg/m
HQ-1SNWG-0461/4”6.4 0.5313.43625 25.0 13050 90.0 3.941000.23
HQ-1SNWG-0585/16"7.9 0.59153625 25.0 13050 90.0 4.531150.27
HQ-1SNWG-06103/8”9.5 0.6917.42900 20.0 10440 72.0 5.121300.35
HQ-1SNWG-08131/2"12.7 0.8120.62900 20.0 10150 70.0 7.091800.43


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
